E-PRS-SCANDIC

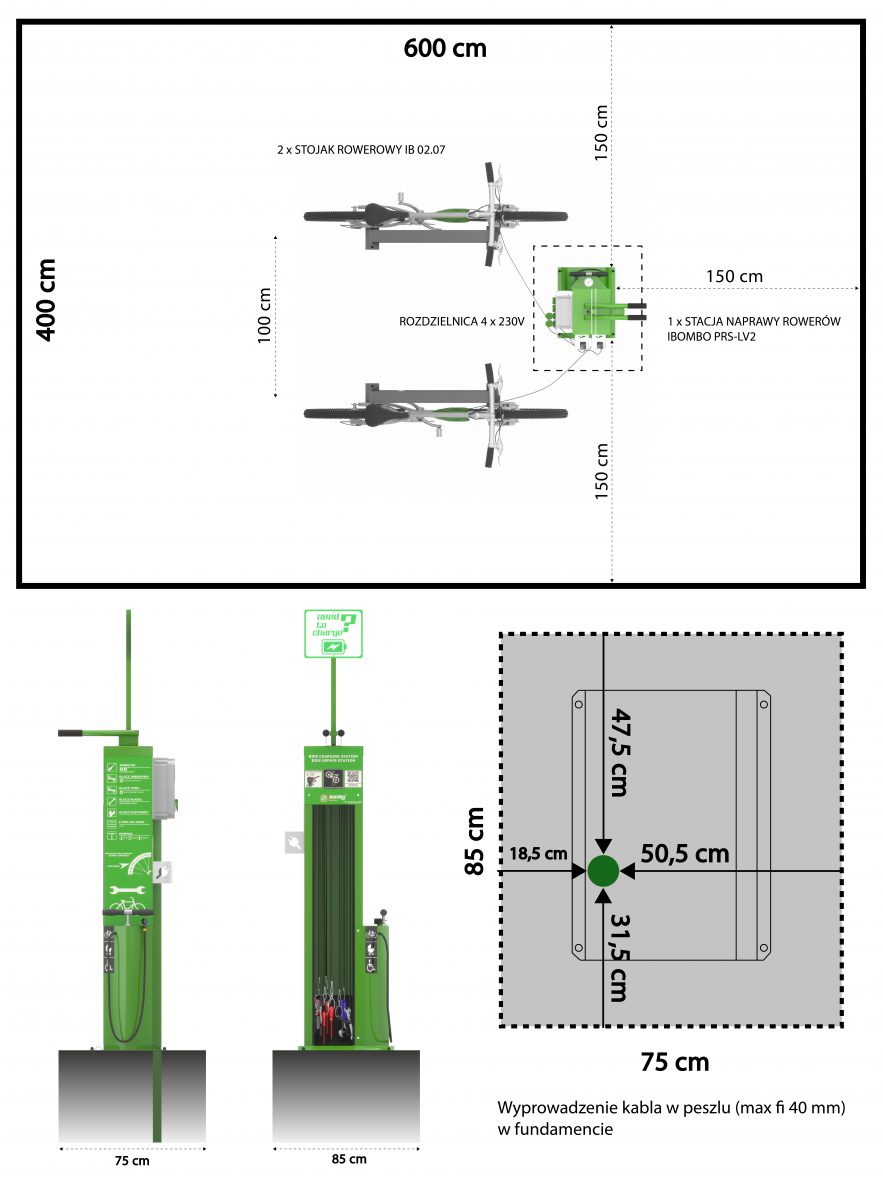

Self-service Bike Repair Station – E-SCANDIC is adapted for use in public spaces. Its housing is made of galvanized or stainless steel with powder or thermoplastic coating. The device in the E-BIKE version is mounted to the ground. Sheet metal elements and the E-BIKE charging module are fastened with anti-theft screws – the bits for the screws will be handed over to the customer.
On the back of the device there is a module with 4 x sockets for charging electric bikes (E-BIKE), 2 x stainless steel holders for chargers and a metal strip covering the power cord coming from the base. The E-BIKE charging module has a compact housing made of high-strength PC / ABS; it has additional RCBO (6A) protection located behind a protective, impact-resistant window. All external parts are made of stainless steel. The sockets (250V) are made of polyamide (PA6) with nickel-plated contacts (IP54).
A safe and convenient complement to the E-BIKE charging module will be our bike racks » CLASSIC SERIES » SILICONE PROTECT.
The tools are attached to the stainless steel ropes hanging inside the column of the station; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. The station is equipped in a hand pump with an adapter for all valve types. The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike.
QR CODE placed on the front enables an immediate access to online publications containing manual repair.
The E-BIKE module complies with European standards:
Directive (RoHS) 2011/65 / EU and 2015/863
2014/35 / EU Low Voltage Directive
Electromagnetic Compatibility (EMC) Directive 2014/30 / EU
Used standards: EC / EN 61439-1; IEC / EN 61439-4

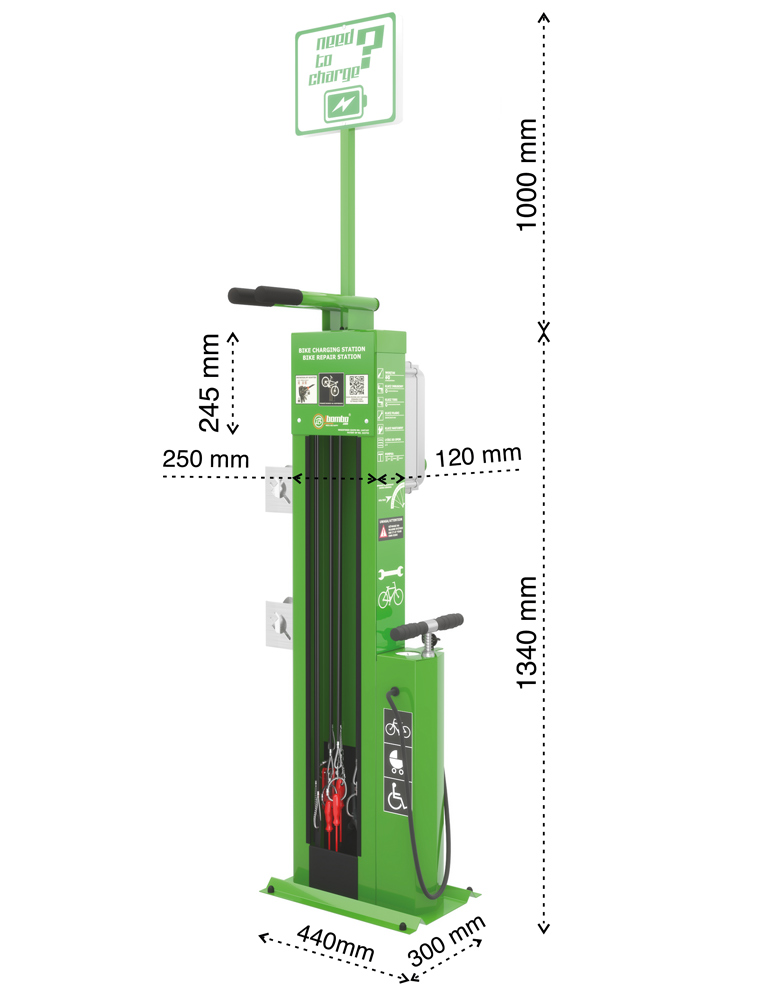

Dimensions:
Wymiary: 134/226 x 54 x 35 cmWeight:
35-50 kgModule:
4 x sockets (250V) for E-BIKE chargingAdvertising area:
up to 5000 cm2Material:
galvanized | stainless steel AISI 304- housing made of galvanized or stainless steel (AISI 304)
- powder or thermoplastic coating
- up to 5000 cm2 of advertising area
-
QR CODE with repair manual
QR CODE with repair manual
-
E-BIKE charging module
E-BIKE charging moduleE-BIKE charging moduleE-BIKE charging module
-
2 x holders for E-BIKE chargers
2 x holders for E-BIKE chargers
-
1 x stand with an E-BIKE information plate
1 x stand with an E-BIKE information plate
-
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coatedBig Side-or-back bike stand – powder coated
-
Small Side-or-back bike stand - stainless steel (AISI 304)
Small Side-or-back bike stand - stainless steel (AISI 304)
-
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
-
elbow disinfectant dispenser (1000 ml)
elbow disinfectant dispenser (1000 ml)
-
stainless steel ropes fi 4 (AISI 316) with rubber coating fi11
stainless steel ropes fi 4 (AISI 316) with rubber coating fi11
-
Phillips screwdriver PH2 + swivel fi4 (AISI 304)
Phillips screwdriver PH2 + swivel fi4 (AISI 304)swivel fi4 (AISI 304)
-
flat screwdriver 5.5 x 1.0 + swivel
flat screwdriver 5.5 x 1.0 + swivelswivel
-
hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivel
hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivelswivel
-
TORX key set | 9 | 10 | 15 | 20 | 25 | 27 | 30 | 40 | + swivel
TORX key set | 9 | 10 | 15 | 20 | 25 | 27 | 30 | 40 | + swivelswivel
-
adjustable spanner 0-32 mm
adjustable spanner 0-32 mm
-
flat spanner 8x10 mm and 13x15 mm
flat spanner 13x15 mmflat spanner 8x10 mm
-
flat pliers
flat pliers
-
3 x tyre levers (plastic with steel core) – nylon coated
3 x tyre levers (plastic with steel core) – nylon coated
-
Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR with an adapter for all valve types + stainless steel hose (difficult to cut) + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR with an adapter for all valve types + stainless steel hose (difficult to cut) + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealantStationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR with an adapter for all valve types + stainless steel hose (difficult to cut) + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
Pure white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Bright red orange
Traffic red
Telemagenta
Claret violet
Yellow green
Moss green
Light blue
Sky blue
Traffic blue
Ultramarine blue
Sapphire blue
Our products can be powder coated in many colours from the RAL palette – after checking the availability.
Traffic white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Traffic red
Moss green
Oxcide red
Light ivory
Traffic blue
Sky blue
Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products. More information »
Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.
We can place your logo / graphics on our products to take care of your brand image.
See our portfolioPRODUCT REGISTERED IN EUIPO No. 1447197
THE PATENT FOR THE INVENTION No. PL 222743
We have the exclusive right to use the invention for commercial or professional purposes throughout the territory of the Republic of Poland. The European Union Intellectual Property Office (EUIPO) in Alicante gives us the right to an industrial design. Thus, we acquired the exclusive right to use the design throughout the EU.
